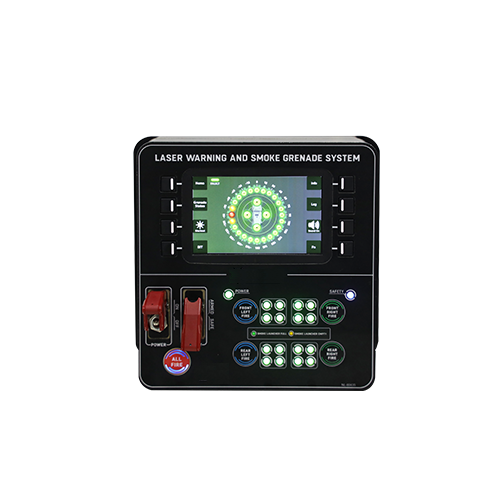

AFSS SGS-3 CONTROL UNIT
AFSS SGS-3 CONTROL UNIT
Umay SGS-3 Control Unit is a control unit which can automatically control laser and smoke grenade systems.
It has capability of:
- -Detection
- -Classification
- -Transmitting incidence angle to the user on digital system
- -Keeping log record for laser warning system against laser threats as per NATO Stanag 3733 standards.
UMAY SGS-3 Control Unit which can control Laser Warning system and laser grenade launcher system, has a structure that combines the leading edge and the most aesthetical specifications of its kind. It enables automatic and manual smoke grenade control.
Description
EN TECHNICAL DOCUMENT
DOWNLOAD
| Laser warning system control capability | Power Consumption: 24 VDC nominal (16-32 V) |
|---|---|
| Opportunity to control laser warning system and smoke grenade automatically and switch between systems | Dimensions: 180x155x116 ±5 mm |
| Capability to control up to 16 smoke grenades | Weight: Control Unit: 1.9 ±0.3 kg |
| Built-In Test Function (BIT) | IP67 Water and Dust Ingress Protection |
| Capability to detect and control two different types of smoke grenades | Production as per IPC-A-610G Class 3 Standards PC |
| Communication Interface: CAN-BUS /RS422 / RS232 Fast Ethernet | MIL-STD-810G, MIL-STD-461, MIL-STD-1275E STANAG-3733 |
| Operating Temperature: -32ºC / +49ºC Storage Temperature: -55ºC / +85ºC | Capability to Communicate with Other Systems |
Additional information
| Power Consumption | 24 VDC nominal (16-32 V) |
|---|---|
| Capability | Controls up to 16 smoke grenades |
| Communication Interface | CANBus /RS422 /RS232 Fast Ethernet |
| Dimensions | 180x155x116 ±5 mm |
| Weight | 1.9 ±0.3 kg |
| Protection Level | IP67 |
| Operating Temperature | -32 / +49 °C |
| Storage Temperature | -55°C / +85°C |
