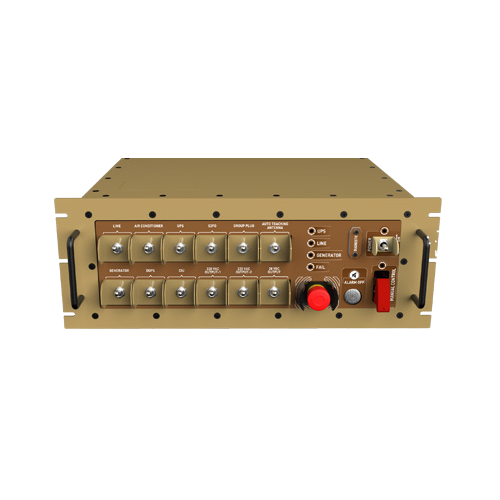

PDU-80 POWER DISTRIBUTION UNIT
PDU-80 POWER DISTRIBUTION UNIT
- AC/DC output control
- Remote control with computer software
- Ability to measure temperature and automatically adjust the environment to the desired temperature,
Description
EN TECHNICAL DOCUMENT
DOWNLOAD
- Ability to control all functions over Ethernet
- Instantly transferring UPS faults and statuses to the user with the Power Distribution Unit,
- Ability to manually power the equipment to be fed by disabling the PDU from the software,
- Power Distribution Unit can manage 3 AC Inputs (UPS, City Network, Generator),
- Being able to automatically charge the UPS batteries when the generator or grid are on.
- With Toggle-type circuit breakers, it provides over-current, short-circuit protections.
- Ability to switch 10 AC/DC outputs,
- It has the ability to read DC, AC current,
- Voltage and Frequency values and transfer them to the user.
Additional information
| TECHNICAL SPECIFICATIONS | ———- |
|---|---|
| COMMUNICATION INFRASTRUCTURE | RS422, RS485, CANBUS |
| DIMENSION (LXWXH) | 482x176x630 MM |
| WEIGHT | 3 KG |
| OPERATING TEMPERATURE | -32 / +55 °C |
| STORAGE TEMPERATURE | -40 / +60 °C |
| STANDARDS | ———- |
| MIL-C-38999 | Military Connector |
| MIL-DTL-27500 | Special Purpose, Electrical Shielded and Unshielded Cables |
| MIL-STD-461E | Military Electromagnetic Compatibility |
| MIL-STD-810G | Military Environmental Conditions |
| MIL-STD-1275E | 28 VDC Counter Characteristic |
| STANAG 4135AC | AC Current Characteristic |
