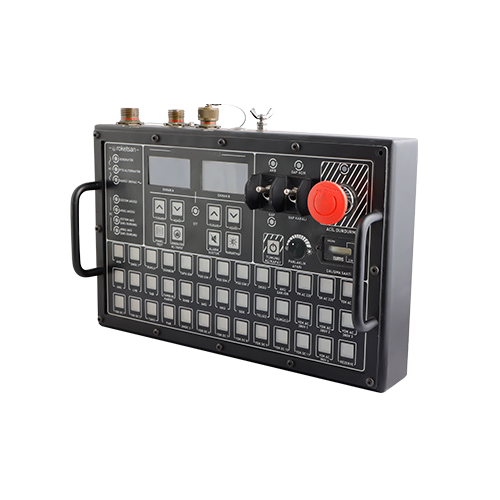

PSU336 POWER DISTRIBUTION / SWITCHING UNIT
PSU336 POWER DISTRIBUTION / SWITCHING UNIT
- Information Screen
- PSU On / Off Switch and Led
- Active Section Selection Switch and Leds
Description
EN TECHNICAL DOCUMENT
DOWNLOAD
- Generator Operating/Stop Button
- Emergency Stop Button
- Emergency Stop LED Indicator
- Alarm Reset Button
- Generator LED Indicator
- PTO Alternator LED Indicator
- Panel Test Button
- Operation Hour Indicator
- System Battery Led Indicator (Green)
- Vehicle Battery Led Indicator (Green)
- Vehicle Battery Charge Status Led Indicator (Red)
- System Battery Charge Status Led Indicator (Red)
- BIT Status Inquiry Button
- On/Off Buttons (In number of Sub-systems)
- On/Off All Button are present.
Additional information
| TECHNICAL SPECIFICATIONS | ———- |
|---|---|
| COMMUNICATION INFRASTRUCTURE | RS422, RS485, CANBUS |
| DIMENSION (LXWXH) | 430x117x260 mm |
| WEIGHT | 5 KG |
| OPERATING TEMPERATURE | -32 / +55C |
| STORAGE TEMPERATURE | -40 / +60C |
| STANDARDS | ———- |
| MIL-C-38999 | Military Connector |
| MIL-DTL-27500 | Special Purpose, Electrical Shielded and Unshielded Cables |
| MIL-STD-461E | Military Electromagnetic Compatibility |
| MIL-STD-810G | Military Environmental Conditions MIL-STD-1275E 28 VDC Counter C |
| STANAG 4135AC | AC Current Characteristic |
